The injection molded plastic market is one of the largest manufacturing segments in the global economy. Valued at approximately $385 billion USD in 2023, it is projected to reach $510–530 billion by 2030 at a compound annual growth rate of around 4.5–5.0%. Injection molding accounts for roughly 32% of all plastics processing globally by volume — more than any other single forming method — and touches virtually every product category from automotive components and medical devices to consumer electronics, packaging, and construction hardware.
The geographic center of global injection molding production is East Asia, with China alone accounting for an estimated 35–40% of world output by volume. Chinese manufacturers range from high-volume commodity molders producing simple parts in large runs to sophisticated precision molders serving automotive, medical, and electronics OEMs with tight dimensional tolerances and full quality management systems. Europe — Germany, Italy, and the Czech Republic in particular — leads in toolmaking precision and process engineering for high-complexity applications. North American molding capacity is concentrated in automotive supply chains in the Midwest and medical device manufacturing clusters in the Northeast and upper Midwest.
The five end-use sectors driving the largest share of injection molding demand are packaging (approximately 26% of volume), automotive (20%), construction (16%), electronics (14%), and medical/healthcare (10%). Medical device molding is the fastest-growing segment by value, driven by aging demographics, increasing device complexity, and the shift to single-use disposable components — a shift that creates high-volume, recurring demand for molded parts in materials ranging from commodity polypropylene to engineering-grade PEEK and medical-grade silicone.
Tooling cost is the most significant upfront investment in an injection molding project and the figure that most often determines whether a design is commercially viable at a given production volume. How much a plastic injection mold costs depends on part size, geometric complexity, number of cavities, steel grade, and whether it is manufactured domestically or offshore.
As a working reference framework:
The largest single cost drivers in tooling are cavity count (each additional cavity adds machining time, material, and fitting labor), side actions and lifters (mechanical features that release undercuts add significant complexity), hot runner systems (heated manifold and gate systems that eliminate cold runners and sprue cost $5,000–$30,000 per drop depending on complexity), and surface finish requirements — texturing and polishing to optical or high-gloss standards can add $2,000–$10,000 to a tool that would otherwise be straightforward.
A critical point often missed in cost discussions: the amortized cost per part — total tooling cost divided by production volume — is far more relevant than the absolute tooling number. A $50,000 tool producing 500,000 parts adds $0.10/part to cost; producing 10,000 parts adds $5.00/part. At low volumes, the tooling cost per part often exceeds the material and molding cost combined, which is why short-run alternatives (soft tooling, 3D printed tooling, machined prototypes) are economically rational below certain volume thresholds.
Injection molding surface finish is specified using standardized grading systems — most commonly the SPI (Society of the Plastics Industry) finish standards in North America and the VDI 3400 standard in Europe and Asia. The two systems address the same range of surface quality but use different scales and are not directly interchangeable without a conversion reference.
The SPI system runs from A-1 (highest gloss, mirror finish) through to D-3 (coarse matte, heavy texture). The grades and their typical applications:
Beyond the steel surface finish, the achievable part surface is affected by material choice, melt temperature, injection speed, and mold temperature. High-gloss finishes require higher mold temperatures (which improves the replication of the polished steel surface), slower fill speeds (which reduce shear-induced haze), and materials with low melt viscosity and good flow. ABS and PC/ABS blends replicate high-gloss surfaces well; glass-filled grades produce a surface that no amount of polish on the steel will eliminate, because the glass fibers protrude slightly as the resin shrinks around them during cooling.
Texture — whether by acid etching (Mold-Tech and equivalent systems) or EDM (electrical discharge machining) — must be specified with adequate draft angle to allow part ejection without drag marks. The standard rule is 1° of additional draft per 0.025 mm of texture depth — a deep leather-grain texture requiring 3° or more of draft on surfaces with heavy texture to prevent surface tearing during ejection.
Burn marks in injection molding appear as dark brown, black, or charred discoloration on the part surface, typically at the last point to fill in the cavity or at locations where trapped air cannot escape. They are one of the most common injection molding defects and one of the most instructive, because their location reveals specific information about the flow pattern and venting condition of the tool.
The most common mechanism behind burn marks is the diesel effect: as the melt front advances through the cavity and compresses the air ahead of it, the air heats adiabatically — the same mechanism as a diesel engine's compression ignition. If the compressed air cannot escape through vents before the melt front reaches it, the air temperature rises to 300–400°C or higher, sufficient to degrade and char most engineering thermoplastics. The burn mark forms at the precise location where the air pocket was trapped.
Short run injection molding — also called low-volume or bridge injection molding — refers to production runs typically ranging from a few hundred to 10,000–25,000 parts, using tooling specifically designed to minimize upfront cost rather than maximize cycle rate and longevity. It occupies the production space between 3D printing (economical below ~100 parts for complex geometries) and full production injection molding (economical above 25,000–50,000 parts for most applications).

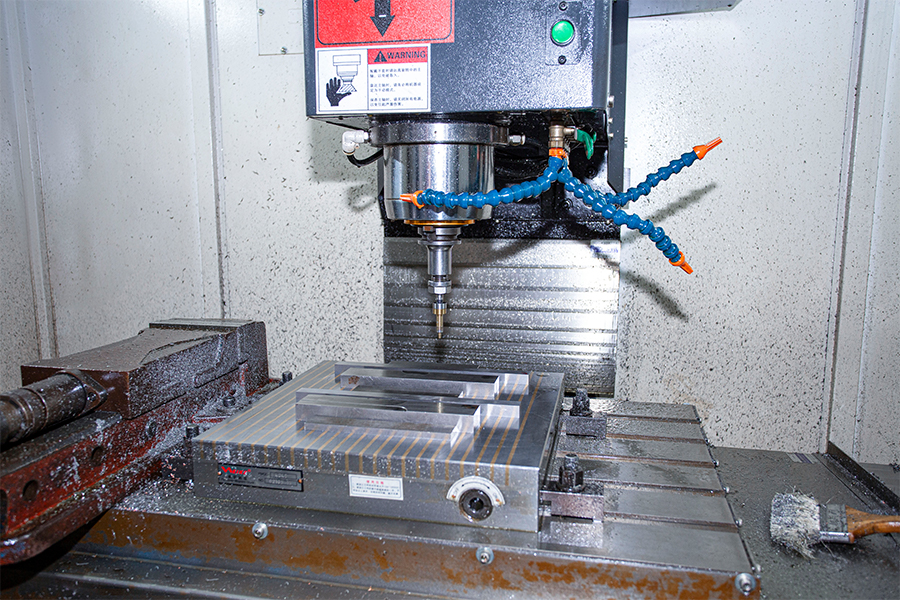

The enabling technologies for short-run injection molding are aluminum tooling, rapid machined tooling in soft steel (P20 pre-hardened), and resin or composite tooling for very short pilot runs. Aluminum mold tools can be machined 5–10x faster than hardened steel equivalents, reducing tool lead time from 8–14 weeks to 2–5 weeks and cutting tool cost by 40–70%. The trade-off is shot life: aluminum tooling typically supports 5,000–50,000 shots depending on the material molded (abrasive glass-filled grades reduce aluminum tool life significantly), compared to 500,000–2,000,000+ shots for hardened steel production tooling.
Short-run molding is the correct choice for: market validation before committing to full production tooling; bridge production while long-lead production tooling is being manufactured; replacement parts for legacy products where total demand does not justify hard tooling investment; and clinical or regulatory trial quantities in medical device development where design changes are likely before final approval.
The key process discipline in short-run molding is design for aluminum tooling: avoiding very sharp internal corners (stress concentration in aluminum is more consequential than in hardened steel), minimizing side actions where possible (each action is a wear surface), and designing adequate draft angles from the outset rather than trying to retrofit them. Parts designed with short-run tooling in mind can often be transitioned to production tooling with minimal design changes; parts designed assuming hard tooling from the start sometimes cannot be economically reproduced in aluminum at all.
Insert molding and overmolding are both processes that combine two or more materials into a single molded component, but they differ fundamentally in what the secondary material encapsulates and in how the process is sequenced. Understanding the differences between insert molding vs. overmolding is essential for selecting the right process in a multi-material part design.
In insert molding, a pre-formed component — most commonly a metal insert such as a threaded brass nut, steel pin, electrical contact, or stamped metal bracket — is placed into the mold cavity before injection. The molten plastic is then injected around and over the insert, encapsulating it as the plastic solidifies. The result is a single component where the metal insert is permanently and precisely located within the plastic part, with the plastic flowing into undercuts or through holes in the insert to create a mechanical interlock that resists pull-out and torque loads.
Insert molding is used wherever a plastic part needs the mechanical properties of metal at a specific interface — threaded connections that must withstand repeated assembly and disassembly, electrical terminals that require conductivity, bearing surfaces that require hardness the plastic cannot provide. The process eliminates secondary press-fit or ultrasonic insertion of metal inserts, which reduces assembly cost and improves pull-out strength consistency.
In overmolding, a previously molded plastic substrate (the first-shot part) is placed into a second mold, and a second thermoplastic material — typically a softer TPE, TPU, or elastomer — is injected over and around designated surfaces of the substrate. The two plastics bond either chemically (through material compatibility and processing conditions) or mechanically (through interlocking geometry) at their interface.
Overmolding is used to add soft-touch grip surfaces to rigid housings (power tools, medical device handles, consumer electronics), to create two-color or two-material aesthetic components, to add compliant sealing features to rigid structural parts, and to integrate vibration damping or cushioning into a hard substrate. The soft grip on a toothbrush handle, the rubberized case of a handheld scanner, and the dual-durometer handle of a surgical instrument are all overmolded components.
| Attribute | Insert Molding | Overmolding |
|---|---|---|
| Secondary material | Metal, ceramic, or pre-formed component | Thermoplastic elastomer or second plastic |
| Process sequence | Insert placed in mold → plastic injected around it | First-shot plastic molded → transferred to second mold → second material injected |
| Bond type | Mechanical interlock (plastic flows into insert geometry) | Chemical bond and/or mechanical interlock between two plastics |
| Primary purpose | Integrate metal function (threads, conductivity, hardness) | Add soft-touch, color, sealing, or vibration damping |
| Tooling requirement | Single mold with insert loading fixture | Two molds (first-shot + overmold) or two-shot machine |
| Typical applications | Electronics connectors, threaded housings, medical devices | Power tool handles, medical grips, consumer product enclosures |
The choice between the two processes is driven by what problem the secondary material is solving. If the requirement is structural — threaded connection, electrical interface, bearing surface — insert molding is the answer. If the requirement is ergonomic or tactile — soft grip, sealing lip, color break — overmolding is correct. In some components, both processes are used simultaneously: a medical device handle may overmold a soft grip onto a rigid substrate that itself contains brass insert threads for assembly — a three-material, two-process single component.
Quality control in plastic manufacturing operates at three levels: incoming material verification, in-process monitoring, and outgoing part inspection. Each level addresses different failure modes and together they form the quality management system that determines whether a molded product consistently meets specification.
Resin properties — melt flow index (MFI), moisture content, color, and lot traceability — must be verified against the material specification before production begins. MFI variation of ±10–15% from the nominal specification can cause significant fill, sink, and dimensional variation in the molded part. Moisture content is critical for hygroscopic materials: nylon, PC, PET, and ABS absorb atmospheric moisture and must be dried to below specified moisture levels (typically 0.02–0.15% depending on material) before molding. Running undried hygroscopic resin produces splay marks, bubbles, and reduced molecular weight — defects that cannot be corrected at the press.
Modern injection molding machines capture process data — cavity pressure, melt temperature, injection speed profile, cooling time, clamp force — on a cycle-by-cycle basis. Statistical process control (SPC) applied to key process parameters identifies drift before it causes defect production rather than after. Cavity pressure sensors — piezoelectric transducers mounted in the mold — provide direct feedback on the filling and packing condition inside the mold, which correlates more reliably with part quality than barrel pressure alone. Parts produced in cycles where cavity pressure deviates from the established process window can be automatically rejected by a parts separator before reaching the inspection area.
The quality management framework behind these methods depends on the end market. ISO 9001 is the baseline quality management system for general industrial molding. IATF 16949 (formerly TS 16949) is required for automotive supply chain participation and adds control plan, FMEA, and MSA requirements beyond ISO 9001. ISO 13485 governs medical device manufacturing and adds design control, traceability, and sterile supply chain requirements. FDA 21 CFR Part 820 applies to medical devices sold in the US market. For medical and automotive molders, the quality system is not a differentiator — it is the entry requirement. Buyers in these sectors audit the quality system before approving a new molder, and annual surveillance audits maintain that approval throughout the supply relationship.
